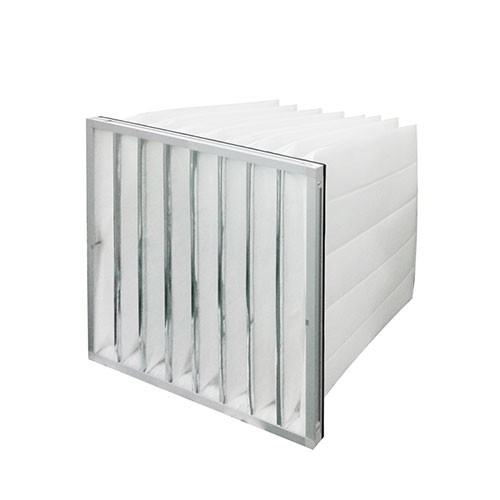

The primary-efficiency bag air filter is mainly used to filter out dust particles ≥5μm in the air-conditioning system, protect the medium-efficiency filter and prolong its service life. The medium-efficiency bag air filter is mainly used to filter out dust particles ≥1μm in the air-conditioning system, protect the subsequent sub-high-efficiency or high-efficiency filters, and prolong their service life.
Bag structure, increase filter area
German ultrasonic filter bag production line, calling a variety of welding procedures to meet the welding requirements of different filter materials

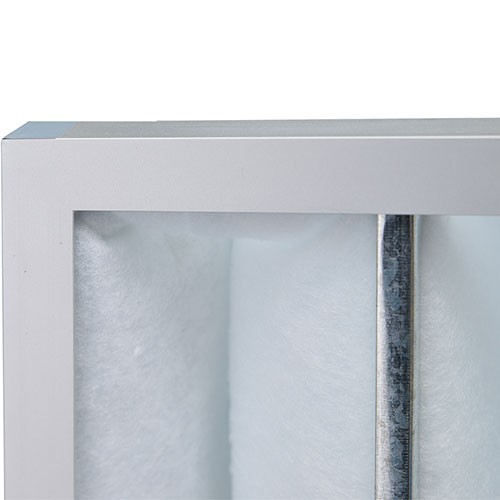

The filter bag is welded in line, with high strength, eliminating the risk of leakage
High consistency of filter bag parameters to improve product stability
Materials and applicable conditions:
Frame material: galvanized sheet/aluminum profile
Filter material: PP/PET composite fiber
Operating conditions: up to 100%RH, 60℃

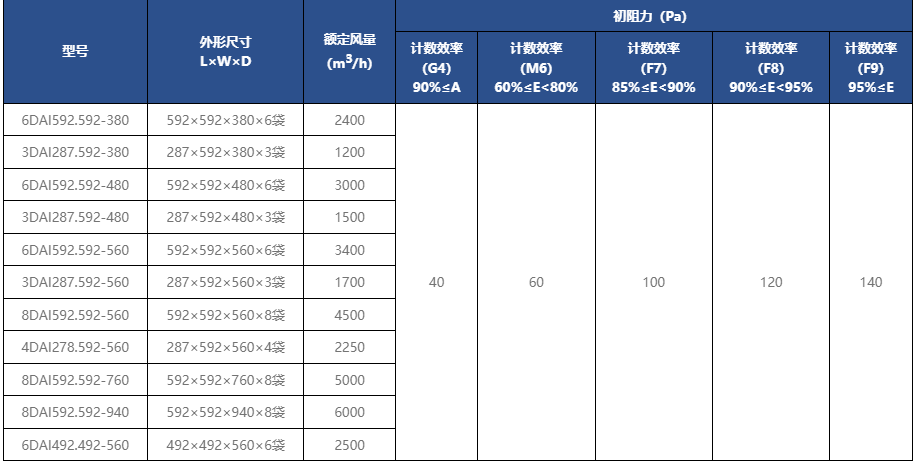

Standard model size and basic performance parameters:
Note: Non-standard filters can be made within the range of 150≤W≤1184, 150≤H≤600, and 300≤D≤940.
